经典名方温经汤基准样品HPLC-Q-TOF/MS分析与指纹图谱研究

Study on HPLC-Q-TOF/MS Analysis and Fingerprint of Classic Prescription Wenjing Decoction Substance Benchmarks

  • 摘要:
      目的  采用HPLC-Q-TOF/MS技术对温经汤基准样品化学成分进行表征, 同时建立经典名方温经汤基准样品指纹图谱, 并对其共有峰进行指认与归属。
      方法  采用Agilent 5 TC-C18(2)柱(250 mm×4.6 mm, 5 μm)色谱柱, 以乙腈-0.1%甲酸水为流动相进行梯度洗脱, 通过PeakView软件辅助解析, 快速鉴别出温经汤基准样品中化学成分, 并通过HPLC-UV及HPLC-ELSD法建立温经汤基准样品指纹图谱。

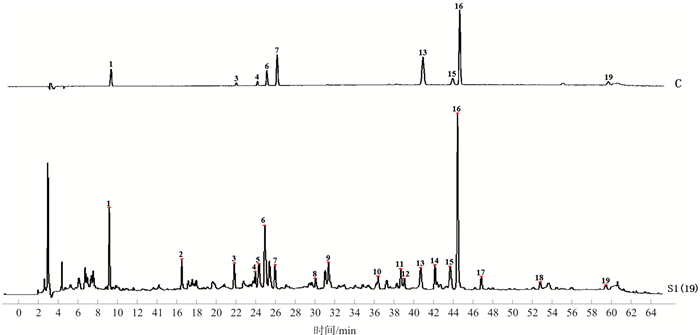

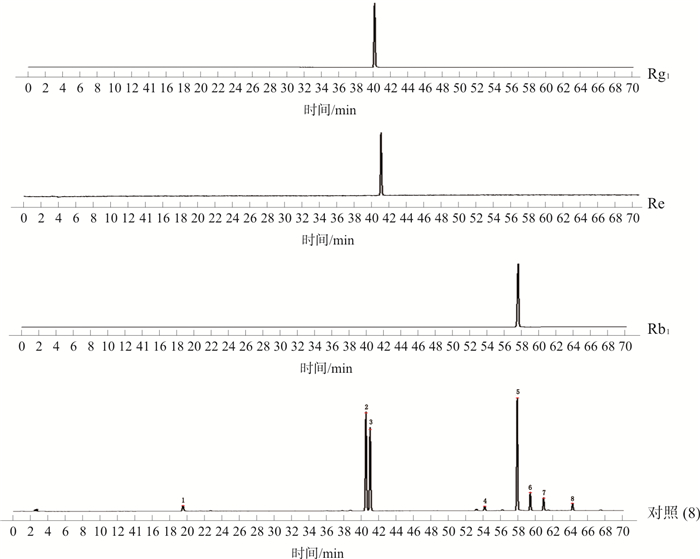

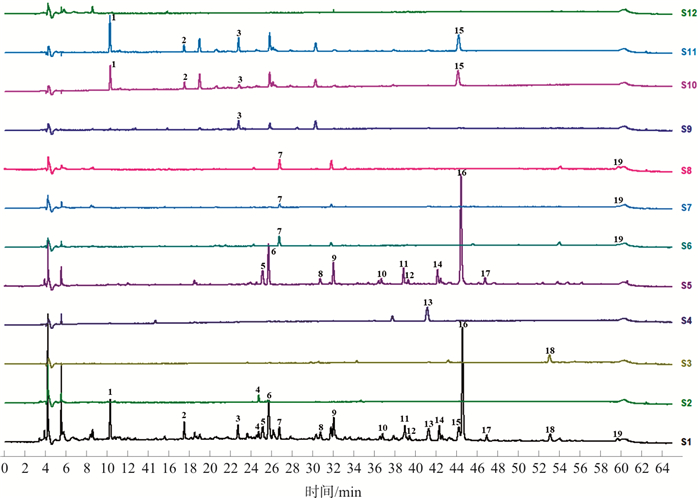

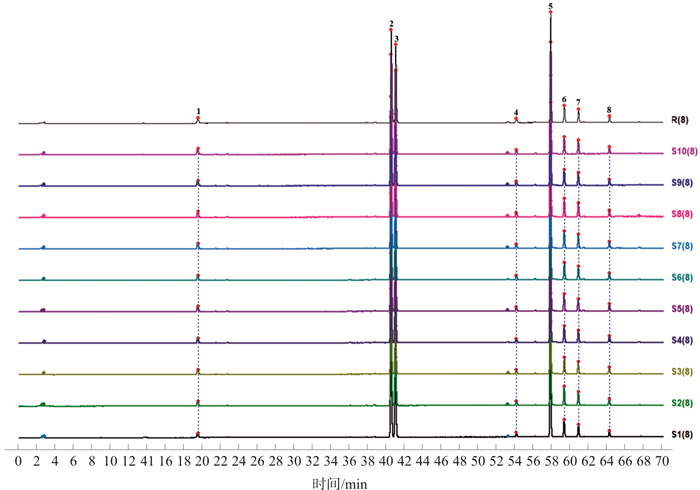

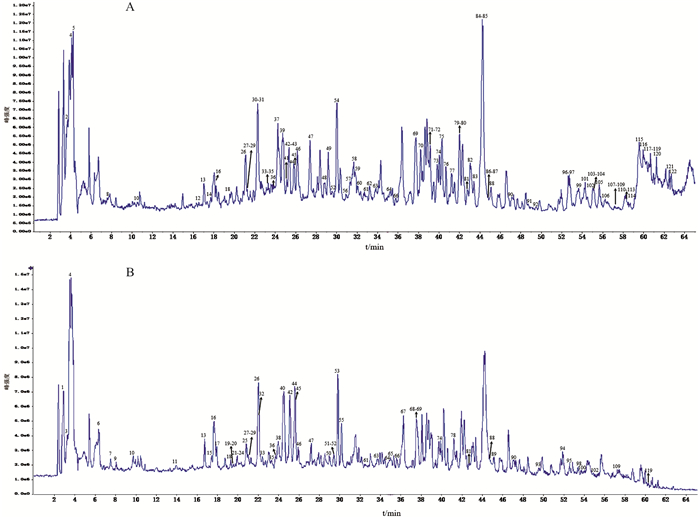

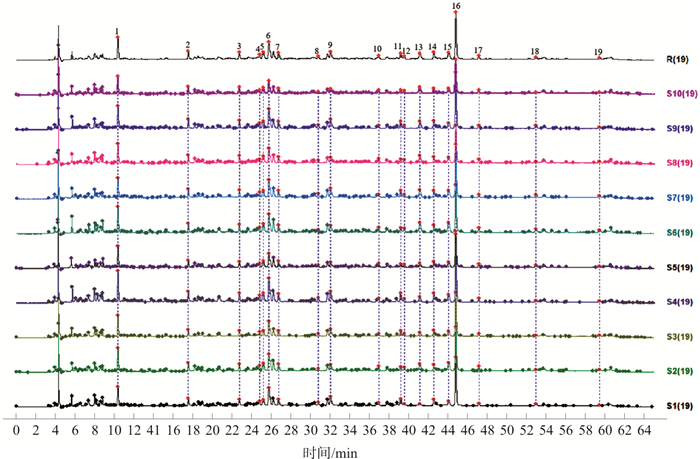

      结果  温经汤基准样品中共分析鉴别出122个化合物, 并进行相关药味归属。建立的温经汤基准样品HPLC-UV指纹图谱有19个共有峰, 通过对照品比对, 指认出没食子酸、芍药苷、甘草酸、甘草苷、桂皮醛、丹皮酚、阿魏酸、藁本内酯、β-蜕皮甾酮9个色谱峰; HPLC-ELSD指纹图谱有8个共有峰, 通过对照品比对, 指认出人参皂苷Rg1、人参皂苷Re和人参皂苷Rb1。建立的HPLC-UV、HPLC-ELSD两张指纹图谱能够归属全方所有药味。
      结论  通过UV、ELSD建立的指纹图谱方法灵敏度高, 稳定性和准确性良好, 全面反映了温经汤基准样品的整体特征, 为温经汤基准样品质量标准的建立提供了可靠的依据。



    Abstract:
      OBJECTIVE  To characterize the chemical composition of the benchmark sample of Wenjing Decoction (WJT) by establishing fingerprints of WJT benchmark sample and conduct the common peaks identification and attribution.
      METHODS  Agilent 5 TC-C18 (2) column (250 mm×4.6 mm, 5 μm) was adopted, and acetonitrile (A)-0.1% formic acid aqueous solution (B) was used as the mobile phase for gradient elution. Assisted analysis through PeakView software, the chemical composition in the benchmark sample of the WJT was quickly identified, and the fingerprint of the benchmark sample of WJT was established by HPLC-UV and HPLC-ELSD.
      RESULTS  A total of 122 compounds were analyzed and identified by the benchmark sample of WJT, and the relevant herbs was attributed. The HPLC-UV fingerprint of benchmark sample of WJT had 19 common peaks, and 9 chromatographic peaks of gallic acid, paeoniflorin, glycyrrhizic acid, liquiritin, cinnamaldehyde, paeonol, ferulic acid, ligustilide and β-ecdysone were identified by comparison of reference substance. There were 8 common peaks in the HPLC-ELSD fingerprint, and ginsenoside Rg1, ginsenoside Re, and ginsenoside Rb1 were identified by comparison of reference substance. The two fingerprints of HPLC-UV and HPLC-ELSD established could belong to all herbs of the whole prescription.
      CONCLUSION  The method established by UV and ELSD is of high sensitivity, good stability and accuracy, which comprehensively reflects the overall characteristics of the benchmark sample of the WJT. The study provides a reliable basis for the establishment of quality standards for the benchmark sample of WJT.



/
